Fig 663 – 45° Clip with Hex Bolt – SDI Blue Banger Hanger
Quick Overview

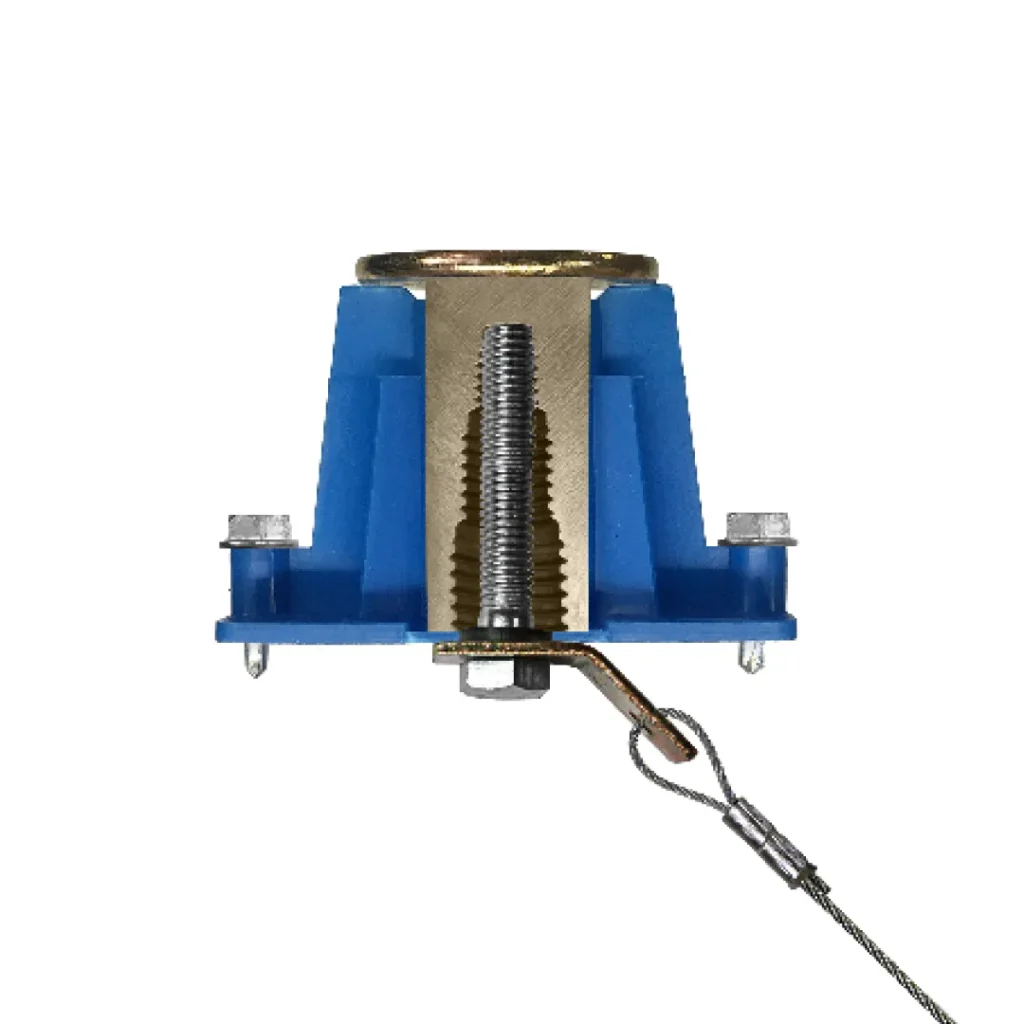

Wedgy Fig 663 - 45° Clip with Hex Bolt - SDI Blue Banger Hanger
Cable Support Attachment for Cast-in-Place Concrete Applications
• Wedgy Fig 663 provides support for Trapezes, HVAC Duct, Cable Tray, Piping and Conduit.
• Quick installation and adjustment.
• Engineered as a COMPLETE ASSEMBLY.
• Capacities Shown in the table (reference part number download) account for the connection to a SDI143812 Blue Banger Hanger with a 3/8” x 1-1/2” Hex Bolt installed.
• Assemblies can be manufactured with 2, 3, or 4 cables. Please contact CEAS for part numbers.
• Cables can be ordered to any length. Please contact CEAS for part numbers.
• U.S. Patent D737,134.
| Option# | Order Option | Description | Substrate | Load (Lbs) |
|---|---|---|---|---|
| 663-1 | C01 | AB45 - 45° Clip and 3/8” x 1-1/2” Hex Bolt (SDI143812 Blue Banger) | SDI Blue Banger Hanger | 314 |
| 663-2 | C02 | AB45 - 45° Clip and 3/8” x 1-3/4” Hex Bolt (SDI381258 Blue Banger) | SDI Blue Banger Hanger | 314 |
To order Wedgy Fig 663, download part number list and determine which Wedgy Fig 663 option(s) are needed for your application and submit to your Sales Rep/Dealer.
Many other manufactured and custom cable support attachment assemblies are available.
Contact CEAS for more ordering options!
