CEAS Wedgy Fig 670 Cable Supports

Fig 670 – 1/4” Threaded Stud

Quick Overview

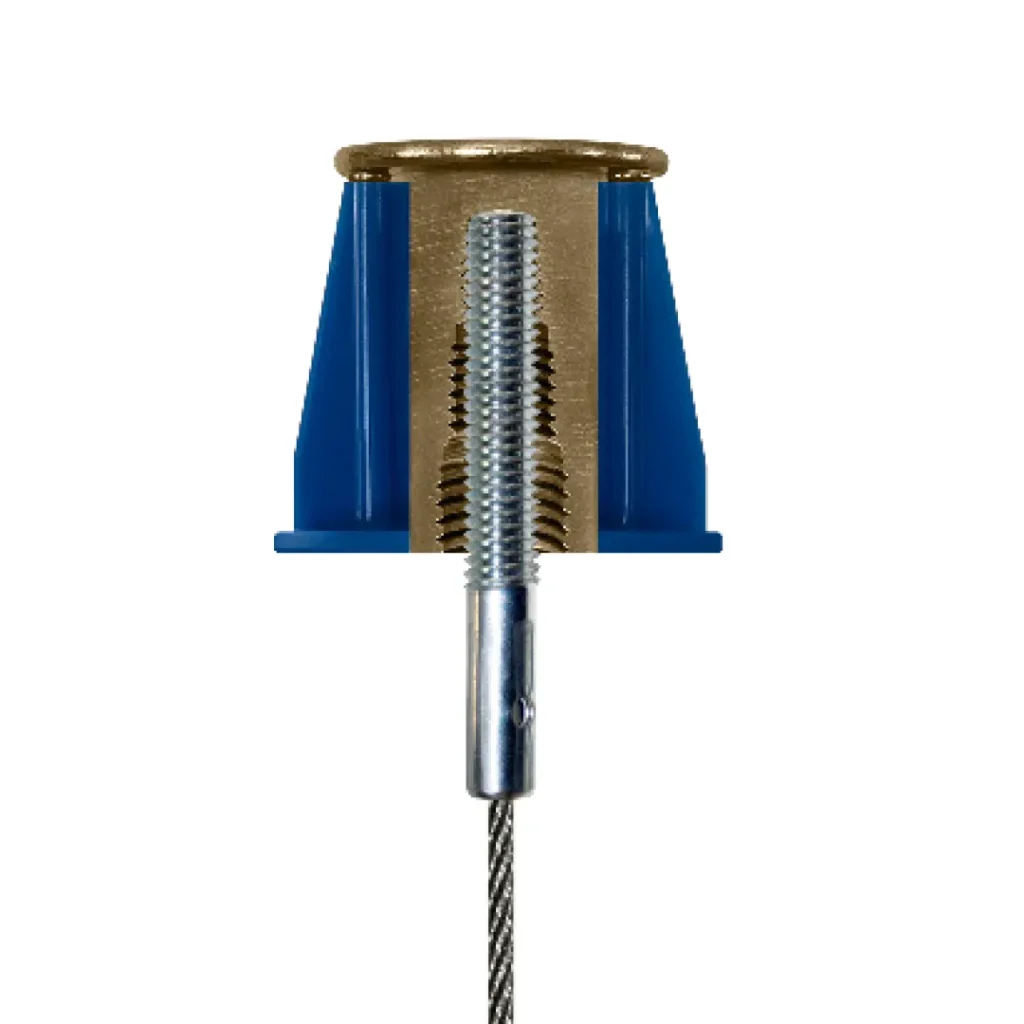

Wedgy Fig 670 - 1/4” Threaded Stud
Cable Support Attachment for Cast-in-Place Concrete Applications

• Wedgy Fig 670 provides support for Trapezes, HVAC Duct, Cable Tray, Piping and Conduit.
• Quick installation and adjustment.
• Engineered as a COMPLETE ASSEMBLY.
• Capacities Shown in the table (reference part number download) account for the connection to a PIP143812 Blue Banger Hanger.
• Cables can be ordered to any length. Please contact CEAS for part numbers.
• U.S. Patent D737,134.

Option#Order OptionDescriptionSubstrateLoad (Lbs)
670-1/4” x 2-1/2” Wedgy Stud (PIP143812 or RDI Blue Banger)PIP Blue Banger Hanger314

To order Wedgy Fig 670, download part number list and determine which Wedgy Fig 670 option(s) are needed for your application and submit to your Sales Rep/Dealer.

To Order, Contact Your Sales Rep/Dealer, or Call (877) GOO-CEAS

Many other manufactured and custom cable support attachment assemblies are available.
Contact CEAS for more ordering options!
