CEAS Wedgy Fig 665 Cable Supports

Fig 665 – 3/8” x 2-1/2” Threaded Stud – PIP or RDI Blue Banger Hanger

Quick Overview

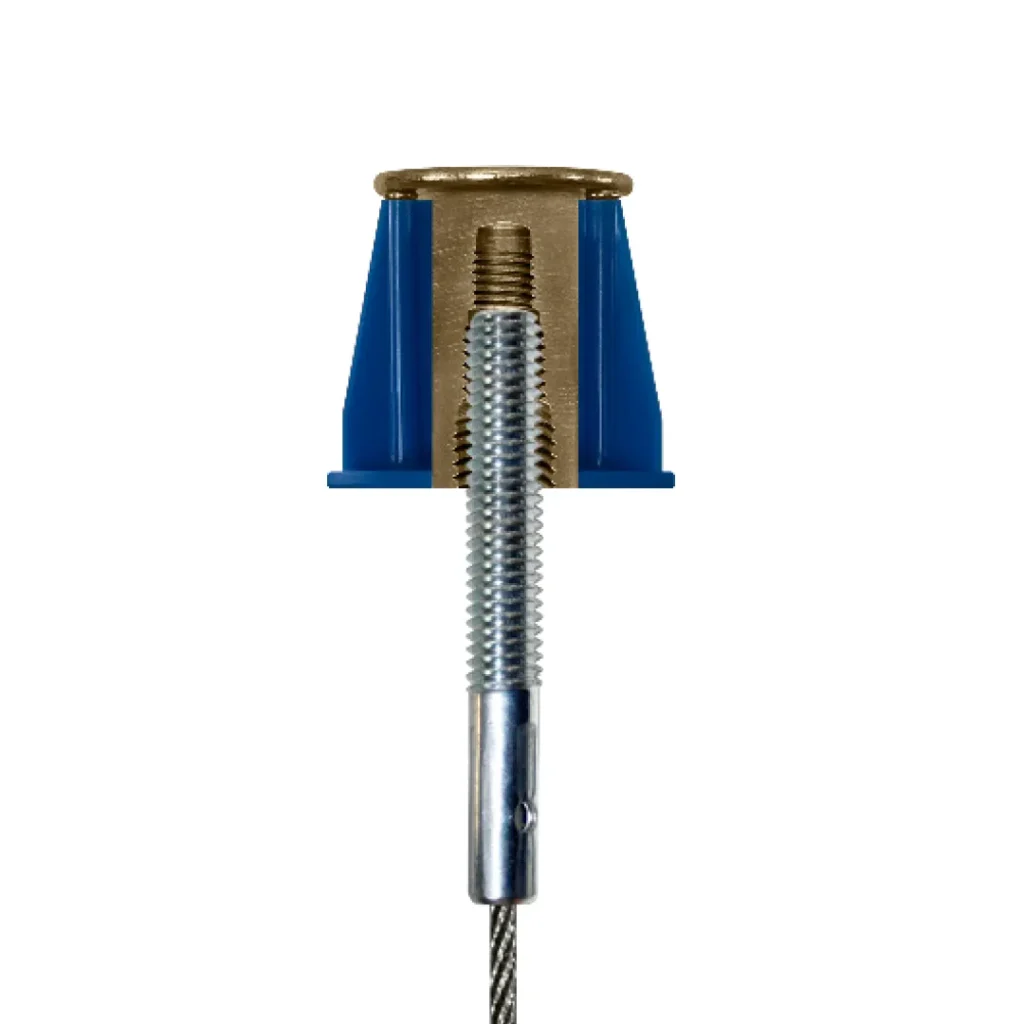

Wedgy Fig 665 - 3/8” x 2-1/2” Threaded Stud - PIP or RDI Blue Banger Hanger
Cable Support Attachment for Cast-in-Place Concrete Applications

• Wedgy Fig 665 provides support for Trapezes, HVAC Duct, Cable Tray, Piping and Conduit.
• Quick installation and adjustment.
• Engineered as a COMPLETE ASSEMBLY.
• Capacities Shown in the table (reference part number download) account for the connection to a PIP143812 Blue Banger Hanger with a 1/4” x 4” Hex Bolt installed.
• Cables can be ordered to any length. Please contact CEAS for part numbers.
• U.S. Patent D737,134.

Option#Order OptionDescriptionSubstrateLoad (Lbs)
665-3/8” x 2-1/2” Wedgy Stud (PIP or RDI Blue Banger)PIP Blue Banger Hanger314

To order Wedgy Fig 665, download part number list and determine which Wedgy Fig 665 option(s) are needed for your application and submit to your Sales Rep/Dealer.

To Order, Contact Your Sales Rep/Dealer, or Call (877) GOO-CEAS

Many other manufactured and custom cable support attachment assemblies are available.
Contact CEAS for more ordering options!
